CloudPanel as Reverse Proxy: Docker & Dockge Setup Guide

CloudPanel is a lightweight hosting panel that handles PHP, Node.js, and Python apps. Its reverse proxy feature lets you route traffic to Docker containers running on the same VPS. Pair it with Dockge, a Dockge Docker compose manager for organizing and deploying your Docker stacks, and you get one server that handles both traditional hosted sites and containerized apps.

If you only need a reverse proxy for Docker containers, tools like Nginx Proxy Manager or Traefik are simpler. But if you also want to host PHP or Node.js sites alongside Docker, CloudPanel is a solid fit. There are also other self-hosted server panels worth comparing.

1. Prerequisites

Before you start, make sure you have:

Both ARM and x86_64 servers are supported.

2. Create a VPS server

I recommend Hetzner for EU-based hosting (good price-to-performance ratio). Hostinger is a solid budget KVM option. For global presence, DigitalOcean and Vultr work fine. For more details check this Hetzner Review and you can check also: DigitalOcean vs Vultr vs Hetzner

Ubuntu 24.04 LTS is the recommended OS for new deployments.

3. Update the VPS server

Always update before installing anything:

apt update && apt -y upgrade && apt -y install curl wget sudo

Verify the OS version:

cat /etc/os-release

You should see VERSION_ID="24.04" (or 22.04 / 12 for Debian).

4. Install CloudPanel

I have also created a course that will help you get going with CloudPanel if you are a beginner, check CloudPanel Setup Course

CloudPanel supports multiple database engines. Pick the one you prefer:

curl -sS https://installer.cloudpanel.io/ce/v2/install.sh -o install.sh; \
echo "6eac061df80f08b75224fcd7fce2f115e201696d8a6122e31abf7259a813b462 install.sh" | \
sha256sum -c && sudo CLOUD=hetzner DB_ENGINE=MARIADB_10.11 bash install.sh

curl -sS https://installer.cloudpanel.io/ce/v2/install.sh -o install.sh; \
echo "6eac061df80f08b75224fcd7fce2f115e201696d8a6122e31abf7259a813b462 install.sh" | \
sha256sum -c && sudo CLOUD=hetzner DB_ENGINE=MYSQL_8.4 bash install.sh

Replace CLOUD=hetzner with your provider (or remove it for generic installs). Available database engines: MARIADB_10.11, MARIADB_11.4, MYSQL_8.0, MYSQL_8.4. Installation takes about 5-10 minutes.

CloudPanel supports PHP, Node.js, and Python sites. If you need to host Node.js apps with CloudPanel, the same install works.

Verify:

systemctl status cloudpanel

The service should show active (running). You can access the admin at https://serverIP:8443.

If checksum fails: the installer script was updated since publication. Fetch the latest from CloudPanel install docs.

5. Secure CloudPanel immediately

1. Create the admin account now. Bots scan for unconfigured CloudPanel instances and can create the admin user before you do. Open https://serverIP:8443 and set up your admin account within minutes.

2. Restrict port 8443 to your IP. Use CloudPanel’s firewall or UFW from the command line:

# Allow 8443 only from your IP (replace with your actual IP)
ufw allow from YOUR_IP_ADDRESS to any port 8443
ufw deny 8443

Or do this through CloudPanel admin: Admin Area > Security > Add Rule to whitelist your IP on port 8443.

3. Update CloudPanel to the latest version:

clp-update

This patches CVE-2025-15241 (open redirect in /admin/users via Referer header manipulation) and privilege escalation vulnerabilities fixed in v2.5.0-v2.5.2.

Verify:

clp-version

Should show v2.5.2 or later.

For comprehensive hardening, see how to secure your CloudPanel server and keep CloudPanel updated regularly.

6. Create an admin subdomain

To access CloudPanel behind a proper domain with SSL, create a DNS A record for a subdomain (e.g., panel.example.com) pointing to your server IP. If you use Cloudflare, the proxy (orange cloud) works fine here.

Then add the subdomain in CloudPanel admin under Settings to secure the admin area.

Verify: Visit https://panel.example.com. You should see the CloudPanel login page with a valid SSL certificate.

7. Install Docker and Docker Compose

The old Docker install method (hardcoding jammy in the apt source) breaks on Ubuntu 24.04. Use the current official method with dynamic codename detection:

sudo apt update
sudo apt install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

sudo tee /etc/apt/sources.list.d/docker.sources <<EOF
Types: deb
URIs: https://download.docker.com/linux/ubuntu
Suites: $(. /etc/os-release && echo "${UBUNTU_CODENAME:-$VERSION_CODENAME}")
Components: stable
Architectures: $(dpkg --print-architecture)
Signed-By: /etc/apt/keyrings/docker.asc
EOF

sudo apt update
sudo apt install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

For a full reference of Docker commands, check essential Docker commands. Everything is also explained in the install Docker on Ubuntu guide.

Verify:

sudo docker run hello-world
sudo systemctl status docker
docker compose version

docker compose version should print something like Docker Compose version v2.x.x. If it fails, you likely installed the deprecated standalone docker-compose instead of docker-compose-plugin.

Failure mode: If docker compose is not found, remove the old standalone package and install the plugin:

sudo apt remove docker-compose
sudo apt install docker-compose-plugin

8. Install Dockge

Dockge will be installed under a CloudPanel site’s htdocs directory. The advantage: CloudPanel’s rClone backups automatically capture Dockge and all your Docker stacks together. The tradeoff: Dockge’s official recommendation is /opt/stacks and /opt/dockge. Both approaches work. The htdocs approach gives you backup coupling with CloudPanel, while /opt/stacks keeps things in standard paths.

If you have CloudPanel external backup activated you will backup all the apps and Dockge at once. See CloudPanel remote backups for setup.

8.1 Create a reverse proxy site in CloudPanel

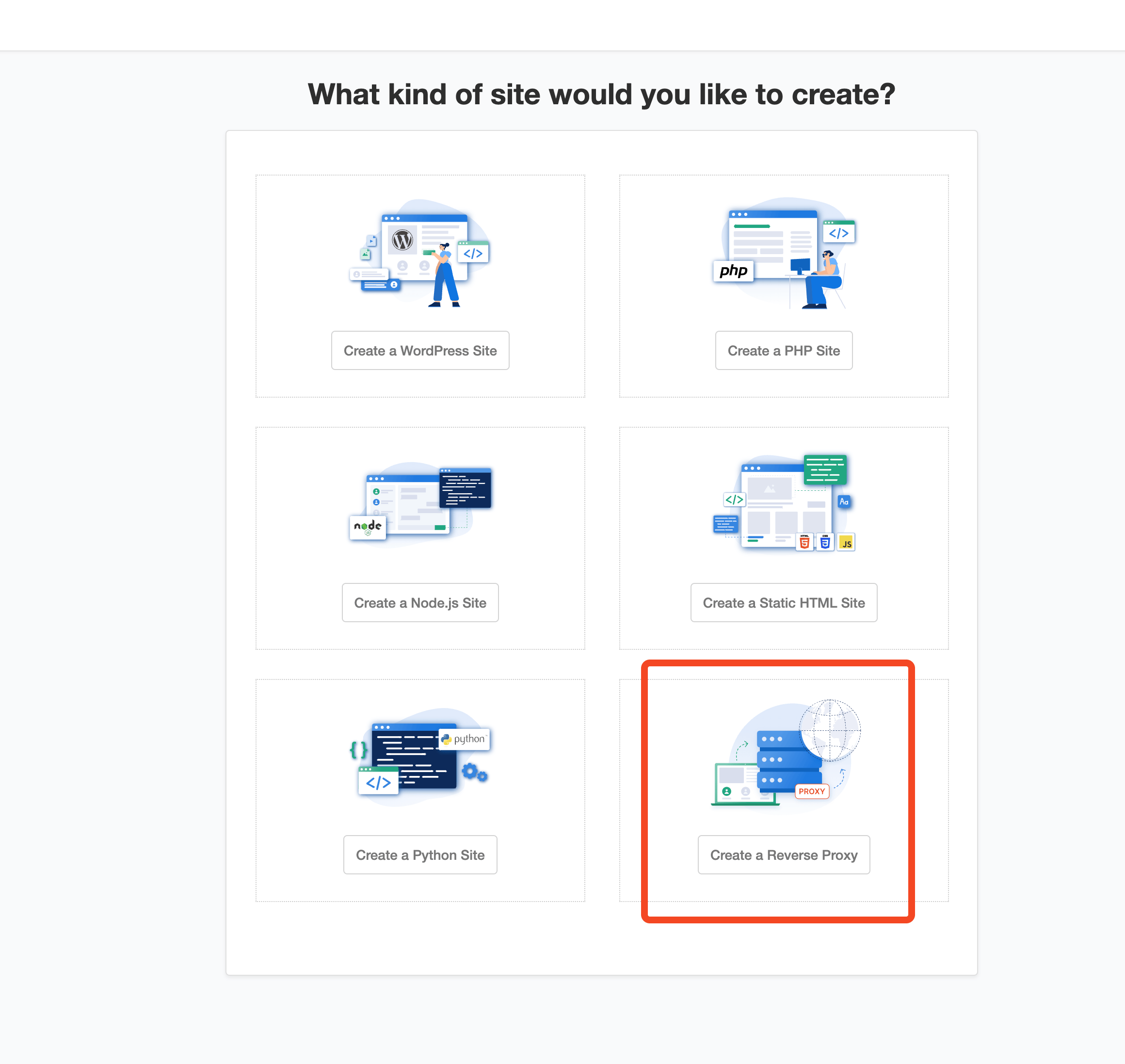

Under Sites > Add Site choose Create a Reverse Proxy.

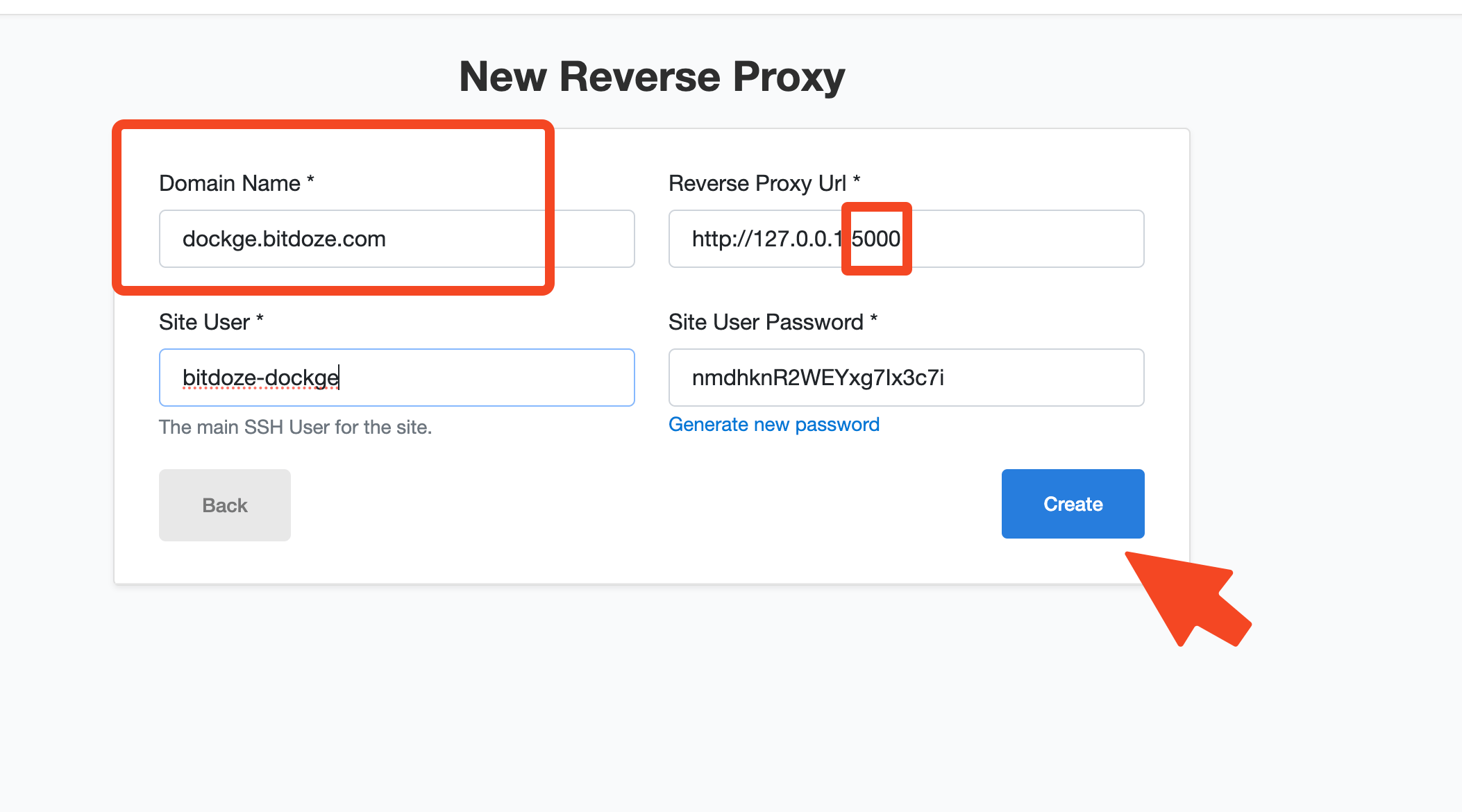

Add the domain you want to use for Dockge, create a user with a password, and set the port. I use port 5000 (host) which maps to Dockge’s internal port 5001. You can customize this.

8.2 Create directories for Dockge

SSH into your server and navigate to the CloudPanel site directory:

cd /home/<user>/htdocs/<website>/
# Example:
cd /home/bitdoze-dockge/htdocs/dockge.bitdoze.com/

Replace <user> and <website> with the values from step 8.1.

Create the directories:

mkdir dockge-stacks
mkdir dockge

• dockge: Dockge’s own data and compose file
• dockge-stacks: where all your Docker app stacks will live

8.3 Deploy Dockge with Docker Compose

Create a compose.yaml file inside the dockge directory:

services:
  dockge:
    image: louislam/dockge:1
    restart: unless-stopped
    ports:
      - 5000:5001  # Host:Container, customize host port as needed
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - ./data:/app/data
      - /home/<user>/htdocs/<website>/dockge-stacks:/home/<user>/htdocs/<website>/dockge-stacks
    environment:
      # Tell Dockge where to find the stacks
      - DOCKGE_STACKS_DIR=/home/<user>/htdocs/<website>/dockge-stacks
      # Set file ownership for stack files (optional but recommended)
      # - PUID=1000
      # - PGID=1000
      # Console is disabled by default since v1.5.0 for security.
      # Enable only if you understand the risk:
      # - DOCKGE_ENABLE_CONSOLE=true

Replace the paths and port with your actual values. Here is a concrete example:

services:
  dockge:
    image: louislam/dockge:1
    restart: unless-stopped
    ports:
      - 5000:5001
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - ./data:/app/data
      - /home/bitdoze-dockge/htdocs/dockge.bitdoze.com/dockge-stacks:/home/bitdoze-dockge/htdocs/dockge.bitdoze.com/dockge-stacks
    environment:
      - DOCKGE_STACKS_DIR=/home/bitdoze-dockge/htdocs/dockge.bitdoze.com/dockge-stacks

Dockge Compose Generator can help you create the exact compose file.

Start Dockge:

cd /home/<user>/htdocs/<website>/dockge
docker compose up -d

Verify:

docker compose ps
curl -I http://localhost:5001

The container should show running and curl should return HTTP/1.1 200 OK.

8.4 Point domain to Dockge

In your DNS provider, create an A record for the Dockge subdomain (e.g., dockge.example.com) pointing to your server IP.

8.5 Create an SSL certificate

In CloudPanel, go to Sites > Manage Site > SSL/TLS and generate a Let’s Encrypt certificate.

Verify: Visit https://dockge.example.com. You should see the Dockge UI with a padlock in your browser.

Note: CloudPanel v2.5.0 fixed a bug where the .well-known directory was deleted during SSL renewal. If you had issues with certificate renewal on older versions, updating CloudPanel should resolve it.

8.6 Access Dockge and create admin user

The first time you access Dockge you will be prompted to create a username and password. Do this immediately.

8.7 Open CloudPanel firewall ports

CloudPanel’s firewall blocks most ports by default (only 22, 80, 443, 8443 are open). If you need direct port access for Docker apps that aren’t routed through CloudPanel’s reverse proxy, open the port ranges:

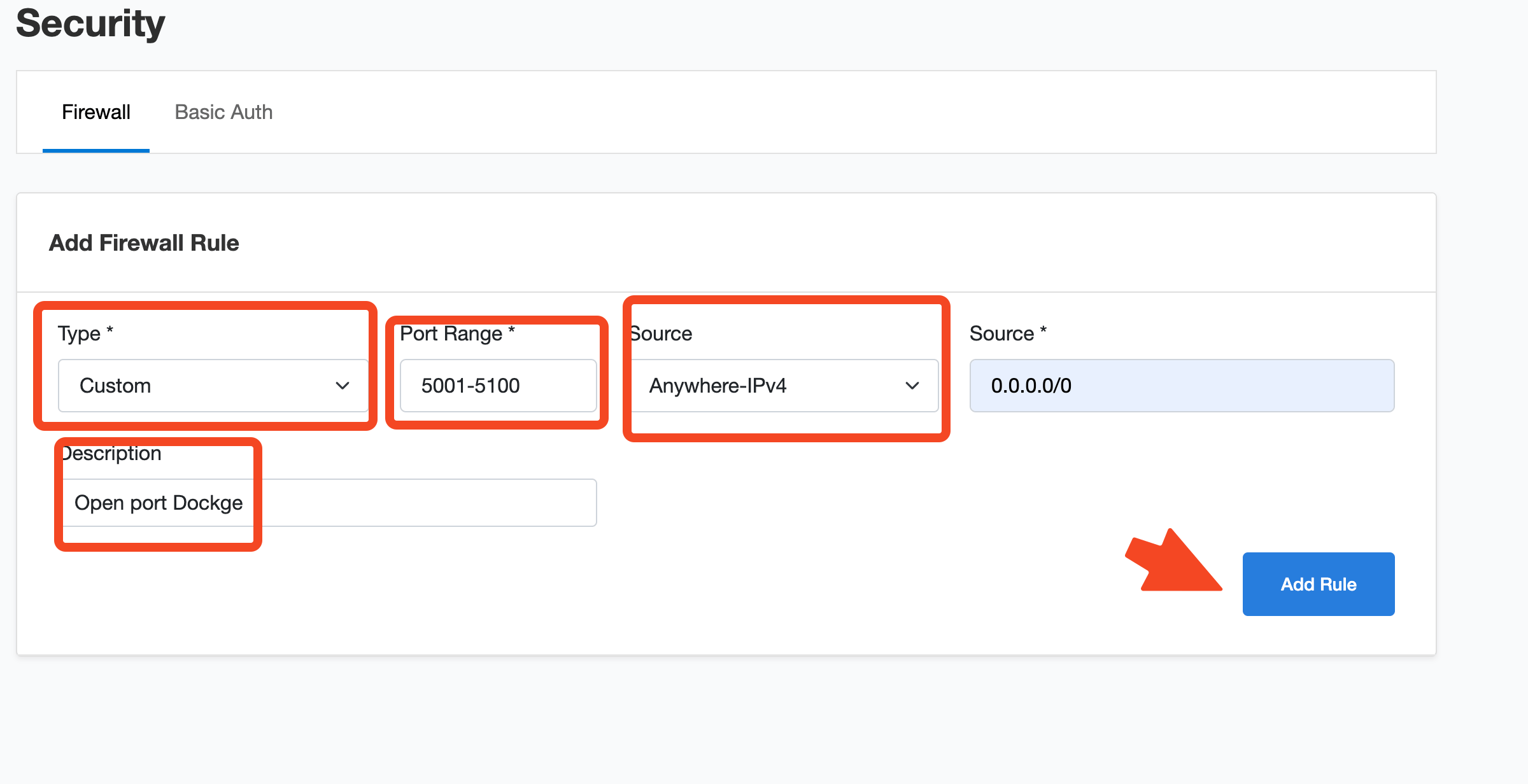

Go to Admin Area > Security > Add Rule and open the ranges you need:

This is optional if all your apps go through CloudPanel’s reverse proxy (which is the recommended approach).

9. Secure the reverse proxy configuration

CloudPanel’s default reverse proxy config uses try_files $uri @reverse_proxy;, which can expose stack files like .env and other secrets. The enhanced config below fixes that, plus adds WebSocket support and proper proxy headers.

9.1 Enhanced Nginx proxy configuration

In CloudPanel, go to Sites > Select your site > Vhost Editor. Replace the default proxy block with:

location / {
  proxy_pass {{reverse_proxy_url}};
  proxy_http_version 1.1;
  proxy_set_header X-Forwarded-Host $host;
  proxy_set_header X-Forwarded-Server $host;
  proxy_set_header X-Real-IP $remote_addr;
  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  proxy_set_header X-Forwarded-Proto $scheme;
  proxy_set_header Host $http_host;
  proxy_set_header Upgrade $http_upgrade;
  proxy_set_header Connection "Upgrade";
  proxy_pass_request_headers on;
  proxy_max_temp_file_size 0;
  proxy_connect_timeout 900;
  proxy_send_timeout 900;
  proxy_read_timeout 900;
  proxy_buffer_size 128k;
  proxy_buffers 4 256k;
  proxy_busy_buffers_size 256k;
  proxy_temp_file_write_size 256k;
}

Key headers explained:

• X-Forwarded-Proto $scheme: tells the backend app whether the original request came over HTTP or HTTPS. Without this, apps behind CloudPanel’s HTTPS may generate insecure links.
• Upgrade / Connection "Upgrade": enables WebSocket support for real-time apps (chat, live dashboards, Dockge’s own UI updates).
• The buffer and timeout settings prevent issues with large uploads and long-running connections.

9.2 Protect sensitive files

For an extra layer of protection, add this block to your Vhost configuration:

# Protect sensitive files
location ~* \.(php|sql|log|config|env)$ {
    deny all;
}

This blocks direct access to files with extensions like .php, .sql, .log, .config, and .env which often contain credentials or configuration data.

9.3 Add basic authentication

For an additional security layer on your Dockge or app sites:

1. Go to CloudPanel admin
2. Navigate to Sites > Select your site > Security
3. Add a username and password for basic authentication

Users will be prompted for credentials before accessing the application.

10. Deploy your first app

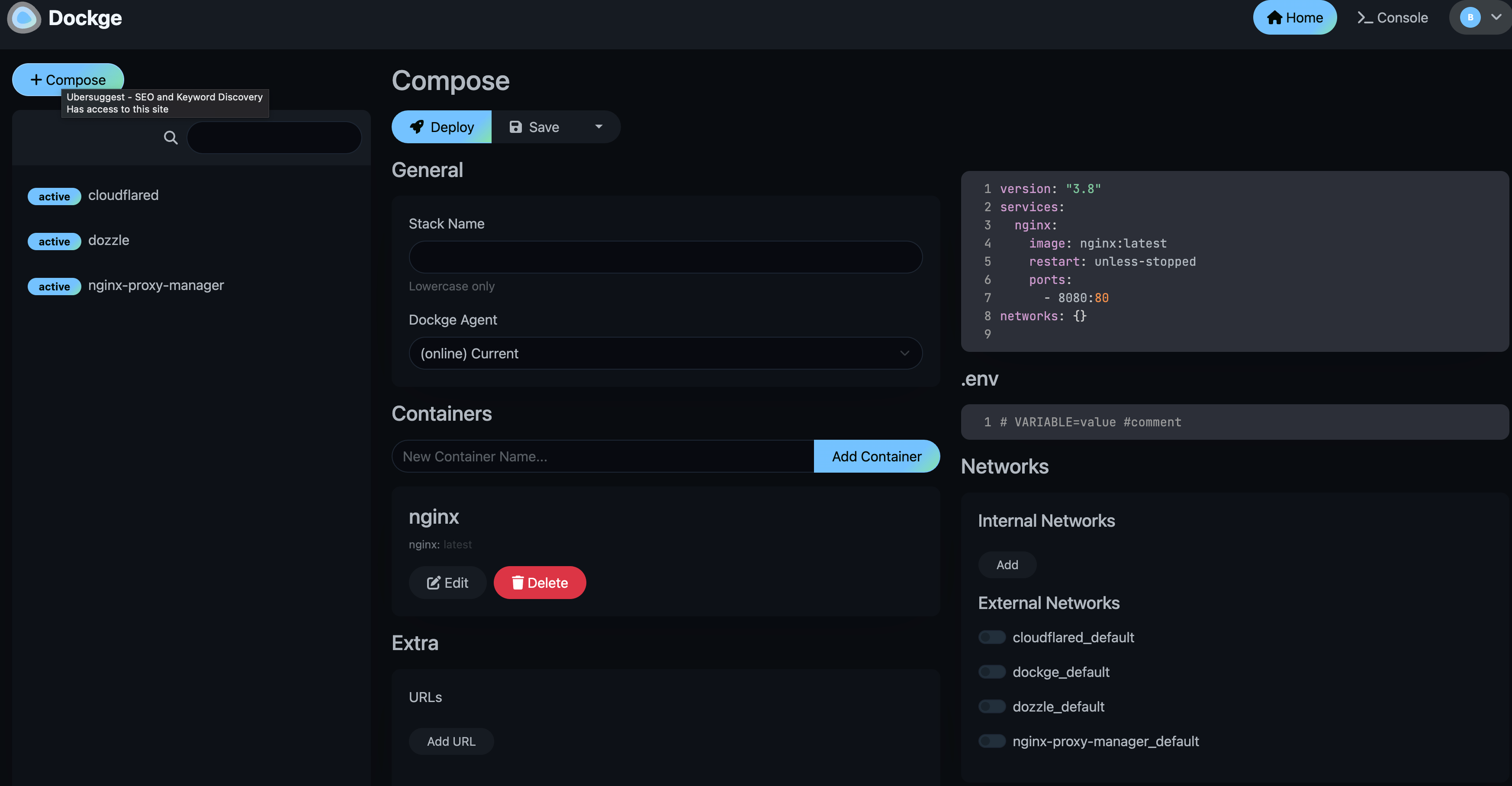

Now you are set. Access Dockge and start deploying apps.

Below are some apps you can deploy on Dockge:

• Install Umami Analytics
• Install Outline Wiki
• Slash Install

For each app, the workflow is:

1. Create a Reverse Proxy in CloudPanel: same as you did for Dockge, create a site as a Reverse Proxy with the domain and port for the app
2. Point the domain to the server: add an A record in your DNS provider
3. Create an SSL certificate: go to CloudPanel under Sites > Manage Site > SSL/TLS and generate a Let’s Encrypt certificate

11. Backups

Set up backups before deploying production apps, not after.

Activate CloudPanel’s rClone external backups to S3, Dropbox, Google Drive, or any remote storage. Go to Admin Area > Backups and configure the rClone integration.

If your stacks are stored under the htdocs directory (the approach in this guide), they are included automatically in CloudPanel backups. If you use /opt/stacks, you need a separate backup strategy.

See CloudPanel remote backups for detailed setup.

If you are on Hetzner, you can also enable Hetzner snapshots for server-level backups.

I have also created a course that will help you get going with CloudPanel if you are a beginner, check CloudPanel Setup Course

12. Troubleshooting

sudo systemctl status docker

sudo apt remove docker.io
sudo systemctl start docker
sudo systemctl enable docker

docker compose restart

13. Alternatives to CloudPanel + Dockge

This setup works well when you need PHP/Node.js sites alongside Docker containers on the same VPS. But if your workload is purely Docker-based, there are simpler options:

If you are evaluating Docker management tools specifically, check Portainer alternatives like Dockge for a deeper comparison. For a broader look at panels, see the self-hosted server panels comparison.

FAQ

cd /home/<user>/htdocs/<website>/dockge
docker compose pull
docker compose up -d
