Nexterm Docker Install: Self-Hosted SSH, VNC & RDP Management

Nexterm is an open-source, self-hosted server management platform for SSH, VNC, RDP, Telnet, SFTP, and FTP connections. At v1.2.2-BETA with nearly 5,000 GitHub stars and an MIT license, it’s past the experimental stage. Production-capable, as long as you back up your data and pin versions. This guide covers a complete Nexterm Docker install using Docker Compose with Traefik reverse proxy, mandatory encryption key setup, and the security hardening you need before opening it to the network.

What is Nexterm?

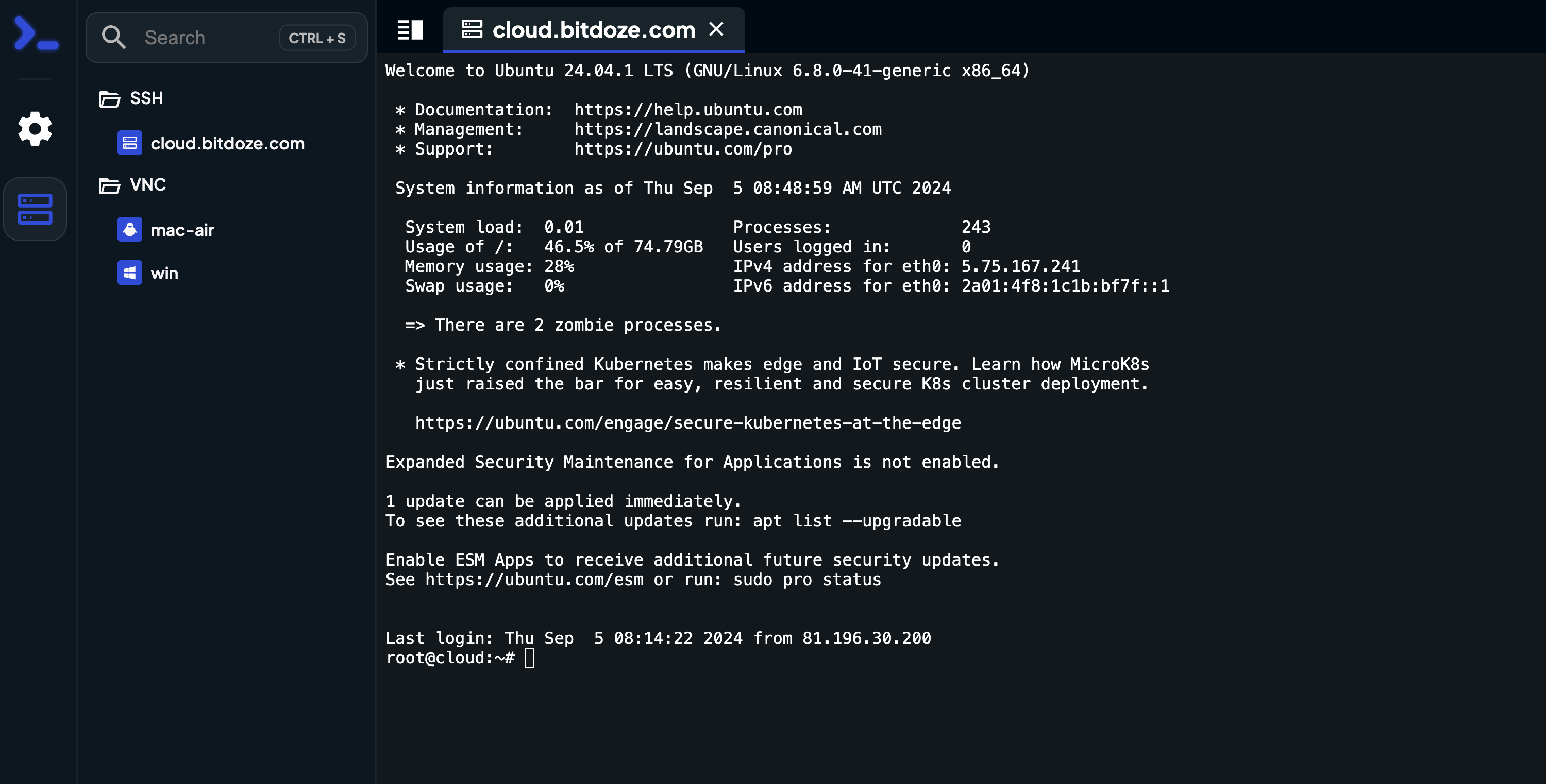

Nexterm is a web-based server management dashboard that consolidates SSH, VNC, RDP, Telnet, SFTP, and FTP into a single interface. You deploy it as a Docker container, point your browser at it, and manage all your remote connections from one place. It supports OIDC SSO, LDAP, passkeys, 2FA, audit logging, session recordings, and role-based permissions (added in v1.2.2). There are desktop clients for Windows, macOS, and Linux, a mobile app for Android and iOS, and a CLI client (nt) for terminal purists.

If you’re comparing self-hosted server management panels, Nexterm covers more protocols than most alternatives with a smaller resource footprint. It’s also worth looking at alternative SSH management tools like Termix if you want something with a different architecture.

Nexterm features

If you’re building out a home lab, check other self-hosted Docker containers for your home server for more ideas.

How to install Nexterm with Docker Compose

This uses the official nexterm/aio image (all-in-one: server + web client + engine). The old germannewsmaker/nexterm image is deprecated. If you’re migrating from it, see the troubleshooting section below.

Prerequisites

Step 1: Generate your encryption key

Since v1.0.3, Nexterm requires server-side encryption of stored passwords and SSH private keys. The ENCRYPTION_KEY environment variable is mandatory. The container won’t start without it.

openssl rand -hex 32

Example output:

a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2

Copy this key. You’ll paste it into the docker-compose file.

Step 2: Docker Compose configuration

Create a docker-compose.yml file:

services:
  nexterm:
    image: nexterm/aio:latest
    environment:
      ENCRYPTION_KEY: "your-generated-key-here"
    volumes:
      - ./nexterm:/app/data
    networks:
      - traefik-net
    restart: always
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.nexterm.rule=Host(`nexterm.domain.com`)"
      - "traefik.http.routers.nexterm.entrypoints=websecure"
      - "traefik.http.routers.nexterm.tls.certresolver=letsencrypt"
      - "traefik.http.services.nexterm.loadbalancer.server.port=6989"

networks:
  traefik-net:
    external: true

Replace nexterm.domain.com with your actual domain. The traefik-net network must already exist (create it with docker network create traefik-net if needed).

The image is nexterm/aio:latest, the all-in-one package (server + web client + C-based engine) that replaces the deprecated germannewsmaker/nexterm. Paste the key from Step 1 into the ENCRYPTION_KEY variable. The volume ./nexterm:/app/data persists all configuration, connections, and credentials. The Traefik labels route nexterm.domain.com traffic through Traefik with automatic Let’s Encrypt TLS on port 6989.

Step 3: Start the container

docker compose up -d

Verify it’s running:

docker compose ps
docker compose logs nexterm

If the container exits immediately, the most common cause is a missing or malformed ENCRYPTION_KEY. Check the troubleshooting section below.

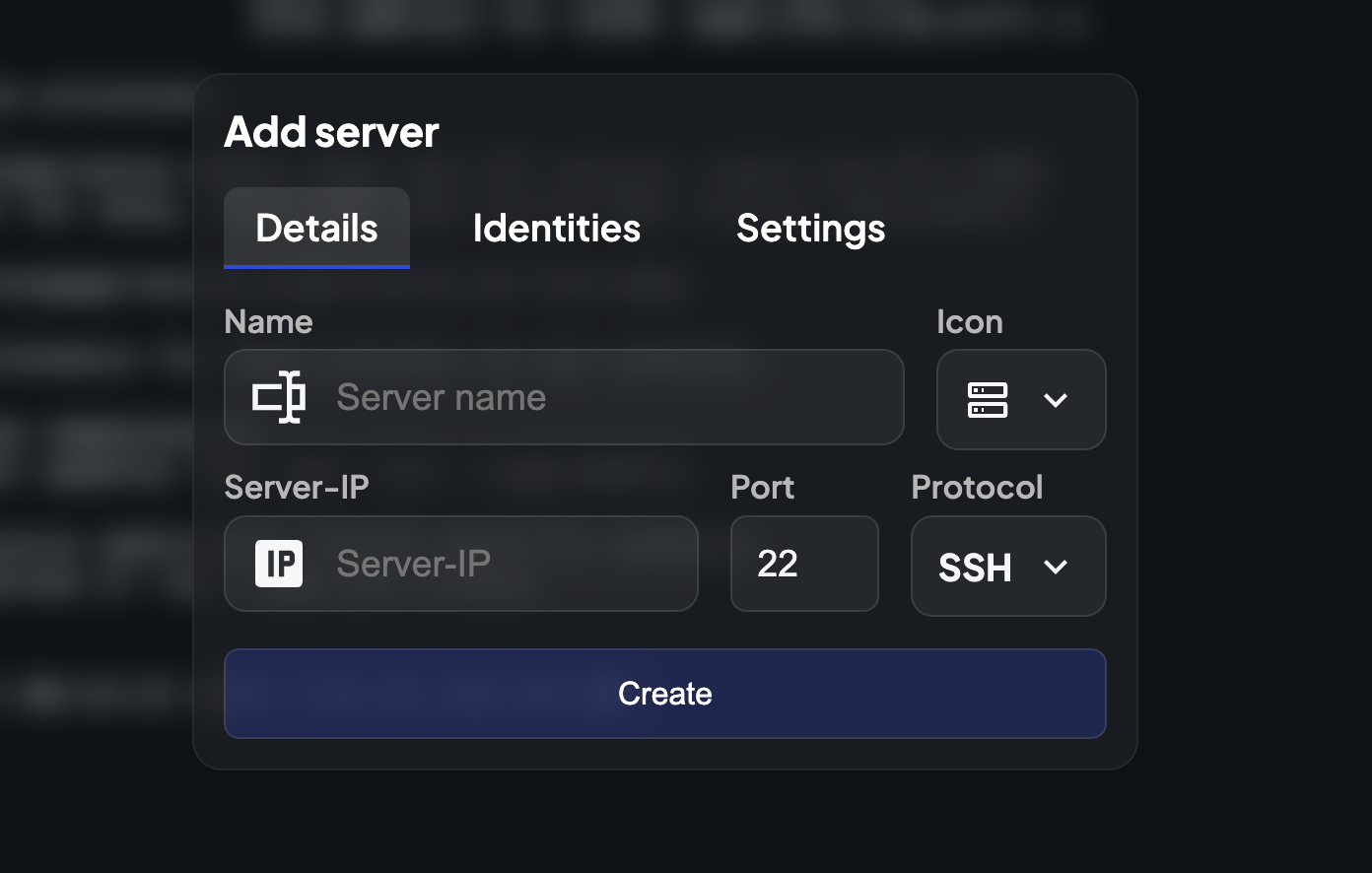

Step 4: Access Nexterm and add your first connections

Open https://nexterm.domain.com in your browser (or http://your-server-ip:6989 if you skipped the reverse proxy). The first user you create becomes the admin. After logging in, add connections:

1. Click Servers in the sidebar
2. Create a folder (e.g., “Production” or “Home Lab”)
3. Click the + button to add a new connection
4. Select the protocol (SSH, RDP, VNC, etc.), enter the host, port, and credentials
5. Save and double-click to connect

Host network vs bridge network: which should you use?

The official Nexterm docs recommend network_mode: host because it enables Wake-on-LAN and localhost connectivity to the Docker host. But host networking means Traefik Docker provider labels won’t work. You’d need a file provider or a different reverse proxy.

For most bitdoze readers with an existing Traefik stack, bridge network (the setup above) is the practical choice. Use host network only if you need Wake-on-LAN or localhost server access and don’t use Traefik’s Docker provider.

services:
  nexterm:
    image: nexterm/aio:latest
    environment:
      ENCRYPTION_KEY: "your-generated-key-here"
    network_mode: host
    restart: always
    volumes:
      - ./nexterm:/app/data

Hardening and production notes

Back up before upgrades. Nexterm is beta. Data loss is possible between major version jumps. Always back up the ./nexterm data directory before pulling a new image:

docker compose down
cp -r ./nexterm ./nexterm-backup-$(date +%Y%m%d)
docker compose pull
docker compose up -d

ENCRYPTION_KEY management. Store the key in a password manager. Never commit it to git or paste it in public forums. If you lose it, all stored credentials become unrecoverable. Docker secrets are supported. Mount at /run/secrets/encryption_key instead of using the environment variable. Learn more about how to manage secrets securely with Docker Compose.

Firewall. If you’re using host network mode on a public VPS, port 6989 is exposed directly on all interfaces. Use UFW or iptables to restrict access, or put Nexterm behind a reverse proxy. If you’re running on Hetzner, read how to secure your Docker server. For broader VPS hardening, secure your VPS with CrowdSec.

Resource usage. Nexterm typically runs under 200 MB RAM. The AIO image is ~95 MB compressed. It doesn’t need much. A small VPS handles dozens of connections.

Regular updates. Check GitHub releases periodically. Use nexterm/aio:latest to auto-update on pull, or pin to a specific version like nexterm/aio:1.2.2-BETA for stability.

Troubleshooting common issues

docker compose logs nexterm

docker compose exec nexterm ping target-ip

proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";

# old (deprecated)
image: germannewsmaker/nexterm:1.0.1-OPEN-PREVIEW
# new
image: nexterm/aio:latest

Conclusion

Nexterm at v1.2.2-BETA is a capable, lightweight, self-hosted server management platform. The Nexterm Docker install with Docker Compose gives you SSH, VNC, RDP, Telnet, and SFTP from a single web dashboard, with proper encryption at rest, 2FA/passkey support, and session recording. It runs comfortably on a small VPS and integrates well with Traefik for HTTPS access.

If you’re exploring the space, check self-hosted server management panels for a broader comparison, or look at alternative SSH management tools like Termix for different trade-offs.
